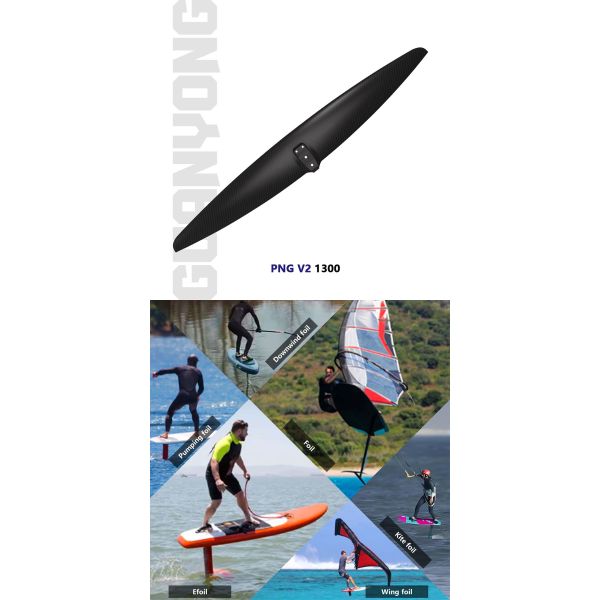

GY-AXIS Carbon Hydrofoil Front Wing PNG V2 1300 Black 1632sqcm All-Around SUP Light Wind Foil Wingfoil
| Model |
Front wing
length |
Front wing
width |
average
chord |
projected
area |
volume |
area ratio |
| PNG v2 1200 |
1200mm[47.24in] |
195mm[7.68in] |
150.0mm |
1803cm² [279.5in²] |
2294cm² [139.99in3] |
8.0 |

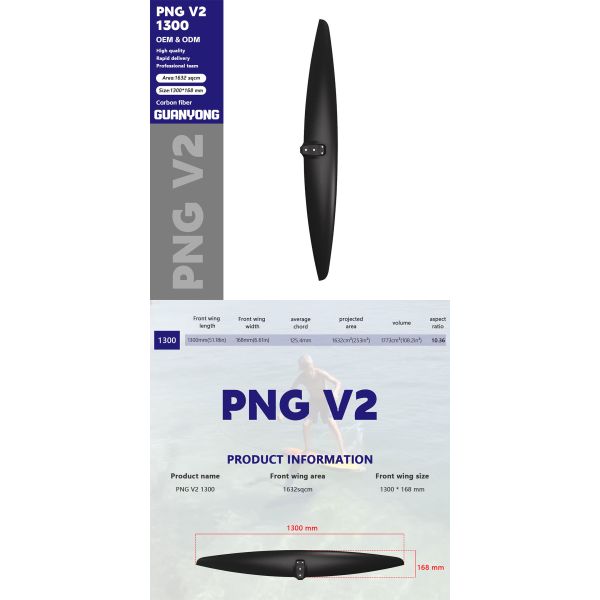

| PNG v2 1300 |
1300mm[51.18in] |
168mm[6.61in] |
125.4mm |
1632cm²[253in²] |
1773cm² [108.2in3] |
10.36 |
| PNG v2 1400 |
1400mm[55.12in] |
168mm[6.61in] |
127.4mm |
1786cm²[276.8in²] |
1954cm² |119.2in3] |
10.99 |
The PNG 1300v2 boasts low stall speeds, lower drag, better acceleration, better turning and a significantly higher top-end speed – thanks to its finely tuned High Camber (High-lift) / Low-drag foil section. Use the PNG 1300v2 for SUP/Prone surfing when in smaller or lower energy surf. The amount of lift that the wing creates to get you moving and stay up on micro-waves is astounding.
The PNG 1300v2 has reduced surface area (1632 sq cm) compared to the previous PNG 1300 (1712 sq cm), but with the addition of its new foil section, it achieves the same capacity for early lift. Vastly improved turning and a balanced lift distribution ensure a smooth, stable and comfortable ride, with predictable pitch control that makes navigating between bumps and pumping a breeze.
This stability is crucial for light wind or novice downwinders, offering a more agile manoeuvrable experience than the PNG 1300. We’ve also extended its glide range, for unlocking new distances and manoeuvres when pumping flat water. You’ll be amazed at how much further you can glide between pumps without losing speed or height.
All these features make the AXIS PNG 1300v2 an amazing addition for dock starters, of all levels. The lower drag, improved glide and reduced stall speed are fantastic for those who are progressing and have found that the bigger slow wings are just not much fun anymore.
